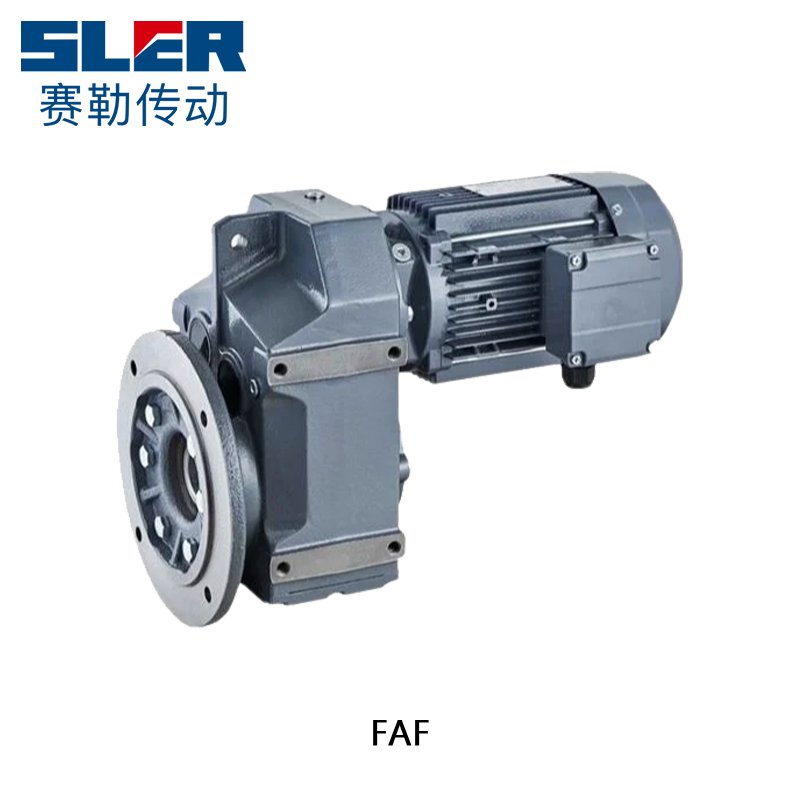

Parallel Shaft Helical Gear Motor (F Type)

Parallel Shaft Helical Gear Motor (F Type)

Input Configurations
  Motor mounted
IEC B5/B14 Motor Flange (AM Flange)
Servo Motor Flange (AQA Flange)
Shaft Input (AD connection)
Output Configurations
Solid output shaft
Solid output shaft with flange
Hollow output shaft
Hollow output shaft and flange
Variants of the Parallel Shaft Helical Gear Unit Series F / FF / FA / FAF
Foot- or flange-mounted
B5 or B14 flange-mounted
Solid shaft or hollow shaft
Hollow shaft with key connection, shrink disk, splined hollow shaft, or Torque Arm
Inquiry

Main Feature

Slim design for limited installation space without having to compromise on the performance, And what applies to many of our gear units: longer operating lives  and wear-free gearing with a high fatigue strength.

Specification

Model
Shaft Dia.
mm
Horizontal Center Height
mm
External Flange Dia.
Mm
Power
Kw
Ratio
i
Nominal Torque
Nm
Solid Shaft
Hollow Shaft
F/FF/FA/FAF37
ф25
ф30
70
160
0.12-3
4-138
180
F/FF/FA/FAF47
ф35
ф35
80
200
0.12-5.5
4-175
360
F/FF/FA/FAF57
ф35
ф40
100
250
0.18-7.5
4-197
420
F/FF/FA/FAF67
ф40
ф40
100
250
0.37-7.5
4-197
700
F/FF/FA/FAF77
ф50
ф50
120
300
0.75-11
4-197
1350
F/FF/FA/FAF87
ф60
ф60
155
350
1.5-22
4-193
2500
F/FF/FA/FAF97
ф70
ф70
180
450
2.2-30
4-203
3700
F/FF/FA/FAF107
ф90
ф90
200
450
3-45
4-205
6500
F/FF/FA/FAF127
ф110
ф100
240
550
5.5-90
4-202
10000
F/FF/FA/FAF157
ф120
ф120
270
660
11-160
4-190
18000

Feedback

WELCOME TO Saile Transmission Device (Hangzhou) Co.,Ltd.

SLER has produced Parallel Shaft Helical Gear Motor (F Type) and wholesale parallel shaft helical gear motors configurations within its 10,000 sqm2 production facility in Hangzhou China.

We offer our customers the best, reliable and flexible options and solutions for their application which includes food industry, cement factories, construction, logistics, mining, quarries, agriculture, as well as oil and gas.

Meanwhile, we are also a professional China parallel shaft helical gear motors manufacturers and parallel shaft helical gear motors suppliers.

Our drive is rooted in our passion for our products and the service that supports our customers.

  • 2015

    Founded(year)

  • 6.15 Million

    Registered capital (USD)

  • 670

    Daily output(pcs)

  • 15-20 Million

    Annual sales(USD)

Application

  • Agriculture

    Agriculture

  • Cement-plants

    Cement-plants

  • Construction

    Construction

  • Food-industry

    Food-industry

  • Logistics

    Logistics

  • Mining

    Mining

  • Natural-Gas

    Natural-Gas

  • Oil

    Oil

  • Quarries

    Quarries

Case

  • Center-drive-for-mud-scraper

  • Industrial-cleaning-and-anti-corrosion-equipment

  • Inverted-umbrella-burst-gas-machine

  • Reaction-Axe

  • Separation,-filtration,-extraction,-purification-equipment

  • Storage-and-transportation,-packaging-technology-and-pressure-vessels

  • Biological-fermentation-equipment

  • Desulfurization-and-denitrification-equipment

  • Drive-solutions-for-fine-chemical-equipment

  • Environmental-Grille

  • Environmental-water-treatment-equipment

  • Petrochemicals

Related products

Related News

Industry knowledge
How to Choose Parallel Shaft Helical Gear Motor
When choosing a parallel shaft helical gear motor, there are several factors to consider to ensure it meets your specific requirements. Here are some key considerations to help you make an informed decision:
    Power and Torque Requirements: Determine the power and torque requirements of your application. Calculate the required output speed and torque based on the load and operating conditions. This will help you determine the motor size and gear ratio needed.
    Motor Size and Speed: Consider the physical dimensions and speed requirements of the motor. Ensure that the motor can fit in the available space and provide the desired output speed for your application.
    Gear Ratio: Select a suitable gear ratio based on the desired output speed and torque. The gear ratio determines the relationship between the input and output speeds and influences the torque multiplication. Choose a gear ratio that matches your application's requirements.
    Efficiency: Evaluate the motor's efficiency. A higher efficiency motor will consume less energy and generate less heat. Look for motors that have high efficiency ratings to optimize energy usage and reduce operating costs.
    Mounting Options: Consider the mounting options available for the motor. Determine whether you need a foot-mounted or flange-mounted motor based on your application's requirements and available space.
    Motor Construction and Materials: Assess the motor construction and materials. Look for motors with robust construction and high-quality materials to ensure durability and reliability, especially if the motor will operate in harsh or demanding environments.
    Motor Protection: Check if the motor offers appropriate protection features such as thermal protection, overload protection, and ingress protection (IP) rating. These features can enhance the motor's safety and longevity.
    Noise and Vibration: Consider the noise and vibration levels produced by the motor. Depending on your application, you may need to choose a motor with low noise and vibration characteristics to minimize disruptions and ensure smooth operation.
    Environmental Factors: Evaluate the environmental factors that the motor may encounter, such as temperature extremes, moisture, dust, or corrosive substances. Ensure the motor is rated for the specific environmental conditions in which it will operate.
    Manufacturer Reputation and Support: Research the reputation and track record of the motor manufacturer. Choose a reliable and reputable manufacturer that offers good technical support, warranty, and after-sales service.
The Classification of Parallel Shaft Helical Gear Motor
Parallel shaft helical gear motors can be classified based on various factors, including their design features, mounting configurations, and power ratings. Here are some common classifications of parallel shaft helical gear motors:
    Design Features:
    a. Foot-mounted: These gear motors have a base with mounting holes, allowing them to be directly mounted on a flat surface, such as a foundation or equipment frame.
    b. Flange-mounted: These gear motors have a flange on the output side, which allows for direct mounting onto the driven equipment or load.
    c. Shaft-mounted: These gear motors feature an extended output shaft, which can be directly coupled to the driven equipment without the need for additional mounting components.

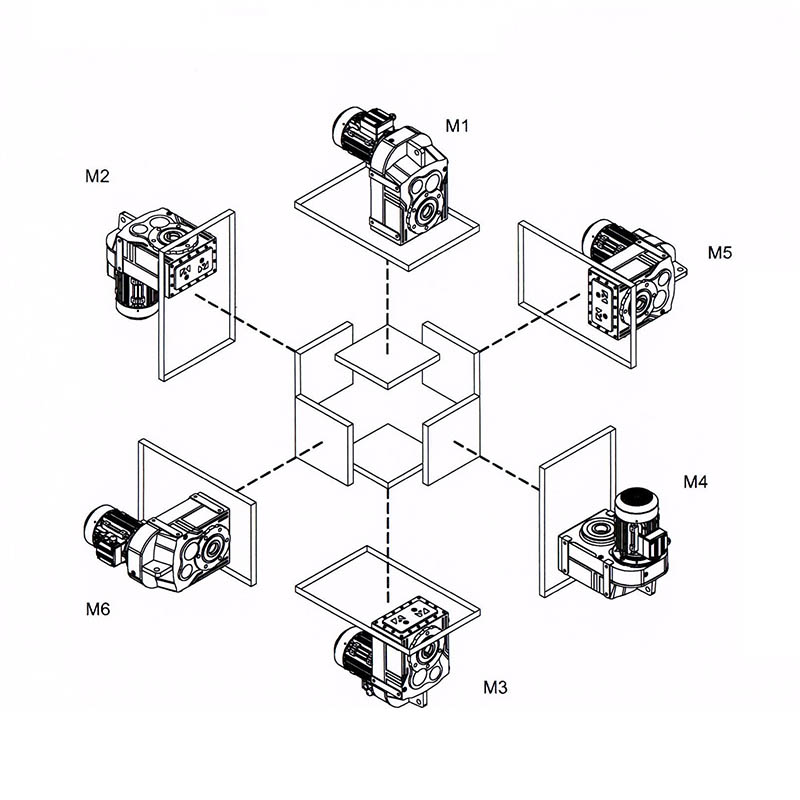

    Mounting Configurations:
    a. Horizontal Mount: These gear motors are designed to be mounted horizontally, with the input and output shafts parallel to the ground.
    b. Vertical Mount: These gear motors are designed to be mounted vertically, with the input and output shafts perpendicular to the ground. They are commonly used in applications such as lifts or hoists.
    Power Ratings:
    a. Standard Duty: These gear motors are suitable for general industrial applications with moderate torque and speed requirements.
    b. Heavy Duty: These gear motors are designed for applications that require higher torque and more demanding operating conditions.
    c. High Efficiency: These gear motors are optimized for maximum energy efficiency, offering reduced power consumption and improved performance.
    Ratio and Output Speed:
    Gear motors can be further classified based on their gear ratio and output speed capabilities. Different gear ratios allow for different speed reductions or increases between the input and output shafts, enabling a wide range of application requirements.
    Frame Size:
    Gear motors are often classified based on their frame size, which refers to the physical dimensions and power ratings of the motor. Common frame sizes include IEC (International Electrotechnical Commission) frame sizes such as 63, 71, 80, 90, etc., which correspond to specific motor dimensions and power ratings.
