Helical Bevel Gear Motor (K Type)

Helical Bevel Gear Motor (K Type)

Input Configurations

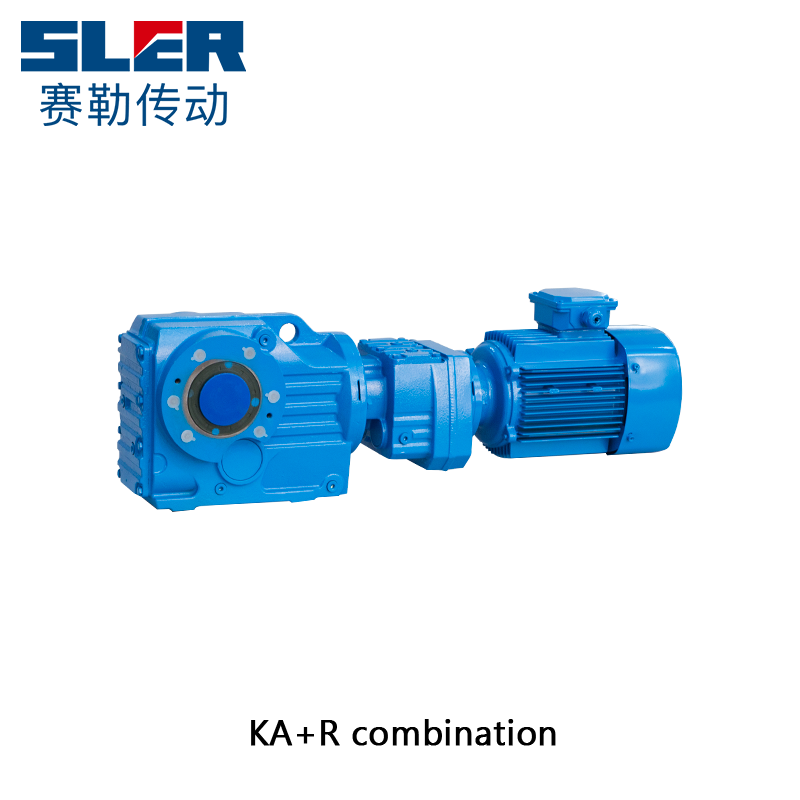

 Motor mounted

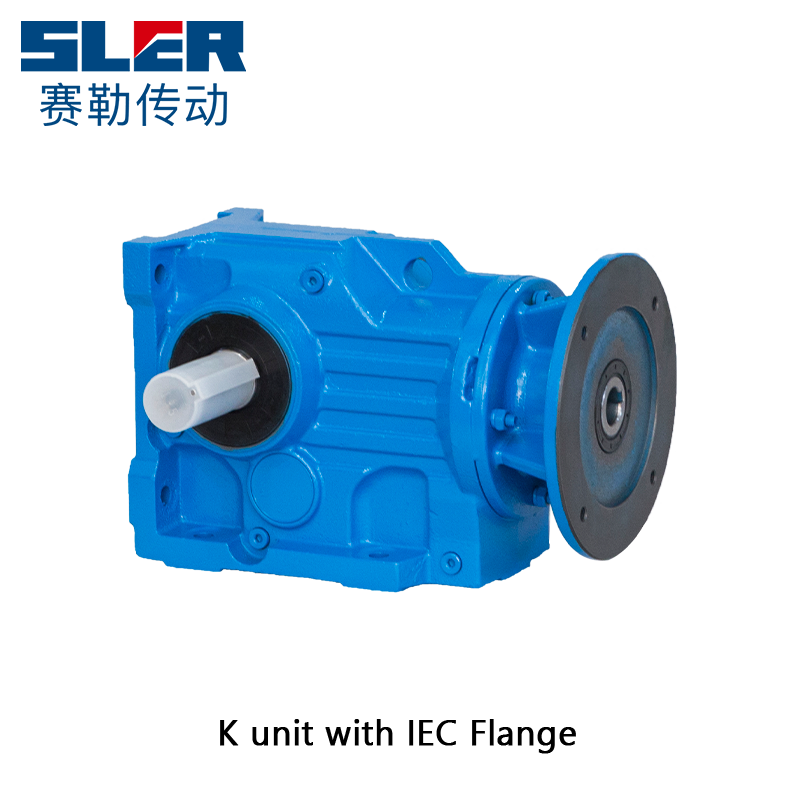

IEC B5/B14 Motor Flange (AM Flange)
Servo Motor Flange (AQA Flange)
Shaft Input (AD connection)
Output Configurations
Solid output shaft
Solid output shaft with flange
Hollow output shaft

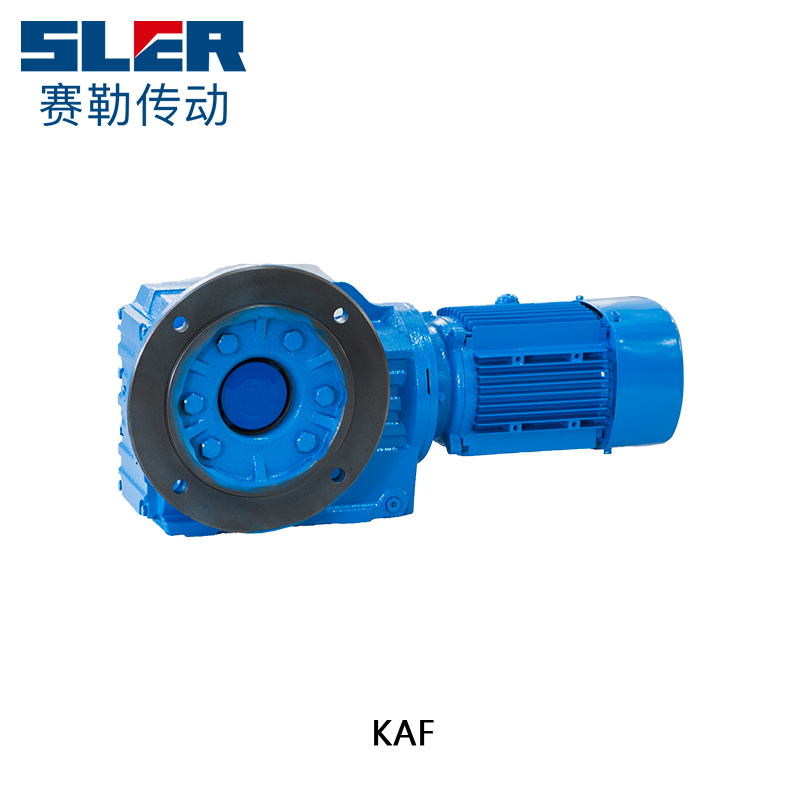

Hollow output shaft with flange
Variants of the Helical Bevel Gear Unit Series K / KF / KA / KAF
Foot- or flange-mounted
B5 or B14 flange-mounted
Solid shaft or hollow shaft
Hollow shaft with keyed connection, shrink disk, splined hollow shaft, or Torque Arm
Inquiry

Main Feature

With their high efficiency in both directions of rotation and at any input speed, these right-angle gear units are very energy-efficient. Their high-endurance gearing is wear-free and lasts a gear unit's lifetime.

Specification

Model
Shaft Dia.
mm
Horizontal Center Height mm
External Flange Dia.
 mm
Power
(kw)
Ratio
(i)
Nominal Torque
(Nm)
Solid Shaft
Hollow Shaft
K/KF/KA/KAF37
ф25
ф30
100
160
0.12-2.2
8-102
180
K/KF/KA/KAF47
ф30
ф35
112
200
0.18-4
8-126
380
K/KF/KA/KAF57
ф35
ф40
132
250
0.25-5.5
8-143
580
K/KF/KA/KAF67
ф40
ф40
140
250
0.37-7.5
8-143
680
K/KF/KA/KAF77
ф50
ф50
180
300
0.75-11
8-175
1300
K/KF/KA/KAF87
ф60
ф60
212
350
1.5-18.5
8-197
2500
K/KF/KA/KAF97
ф70
ф70
265
450
2.2-30
8-197
3900
K/KF/KA/KAF107
ф90
ф90
315
450
4-45
8-197
6800
K/KF/KA/KAF127
ф110
ф100
375
550
7.5-90
8-197
11200
K/KF/KA/KAF157
ф120
ф120
450
660
11-110
8-198
11700
K/KF/KA/KAF167
ф160
ф135
500
-
15-160
8-186
32000
K/KF/KA/KAF187
ф190
ф155
600
-
18.5-200
8-186
50000

Feedback

WELCOME TO Saile Transmission Device (Hangzhou) Co.,Ltd.

SLER has produced Helical Bevel Gear Motor (K Type) and wholesale helical bevel gear motors configurations within its 10,000 sqm2 production facility in Hangzhou China.

We offer our customers the best, reliable and flexible options and solutions for their application which includes food industry, cement factories, construction, logistics, mining, quarries, agriculture, as well as oil and gas.

Meanwhile, we are also a professional China helical bevel gear motor manufacturers and helical bevel gear motor suppliers.

Our drive is rooted in our passion for our products and the service that supports our customers.

  • 2015

    Founded(year)

  • 6.15 Million

    Registered capital (USD)

  • 670

    Daily output(pcs)

  • 15-20 Million

    Annual sales(USD)

Application

  • Agriculture

    Agriculture

  • Cement-plants

    Cement-plants

  • Construction

    Construction

  • Food-industry

    Food-industry

  • Logistics

    Logistics

  • Mining

    Mining

  • Natural-Gas

    Natural-Gas

  • Oil

    Oil

  • Quarries

    Quarries

Case

  • Center-drive-for-mud-scraper

  • Industrial-cleaning-and-anti-corrosion-equipment

  • Inverted-umbrella-burst-gas-machine

  • Reaction-Axe

  • Separation,-filtration,-extraction,-purification-equipment

  • Storage-and-transportation,-packaging-technology-and-pressure-vessels

  • Biological-fermentation-equipment

  • Desulfurization-and-denitrification-equipment

  • Drive-solutions-for-fine-chemical-equipment

  • Environmental-Grille

  • Environmental-water-treatment-equipment

  • Petrochemicals

Related products

Related News

Industry knowledge
What is Helical Bevel Gear Motor?
A helical bevel gear motor is a type of gear motor that combines the features of helical gears and bevel gears. It is commonly used in applications that require high torque and efficiency while accommodating changes in direction or orientation of the power transmission.
Here are some key features and characteristics of helical bevel gear motors:
    Helical Gears: The helical gears in a helical bevel gear motor have angled teeth that are cut at an angle to the gear axis. This helical tooth design allows for smoother and quieter operation compared to straight-cut spur gears. The helical gears also provide higher torque transmission capabilities and improved load distribution.
    Bevel Gears: The bevel gears in a helical bevel gear motor are designed to transmit power between intersecting shafts at a right angle. The bevel gears have cone-shaped teeth and are typically cut at a 45-degree angle. This allows for efficient power transfer and the ability to change the direction of rotation between the input and output shafts.
    Compact and Space-Saving Design: Helical bevel gear motors are known for their compact design, which makes them suitable for applications with limited space. The right angle configuration of the bevel gears allows for a more compact and efficient gearbox design.
    High Torque Transmission: The helical gears in a helical bevel gear motor provide excellent torque transmission capabilities. The angled teeth allow for a larger contact area between the gears, resulting in higher torque capacity and improved efficiency compared to other gear types.
    Smooth and Quiet Operation: The helical gear design reduces noise and vibrations, resulting in smoother and quieter operation. This is beneficial in applications where noise reduction is important, such as in machinery used in residential or noise-sensitive environments.
    High Efficiency: The helical bevel gear arrangement in the motor provides high efficiency by minimizing power loss due to friction and misalignment. The helical gears allow for uniform load distribution, resulting in reduced wear and increased overall efficiency.
    Wide Range of Applications: Helical bevel gear motors find applications in various industries and machinery, including conveyor systems, material handling equipment, packaging machinery, industrial mixers, agitators, and more. They are suitable for both low and high-speed applications, offering versatility and reliability.
Helical bevel gear motors are available in different sizes, torque ratings, and configurations to meet specific application requirements. They provide a reliable and efficient power transmission solution for various industrial and mechanical systems.
The role of Helical Bevel Gear Motor
Helical bevel gear motors play a crucial role in various industries and applications where power transmission and torque conversion are required. Here are some key roles and benefits of helical bevel gear motors:
    Power Transmission: Helical bevel gear motors are used to transmit power from one component to another. They are designed to efficiently transfer rotational motion and torque between the input and output shafts. The helical bevel gear arrangement allows for smooth and reliable power transmission.
    Torque Conversion: Helical bevel gear motors are capable of converting the input torque to a different output torque level. By using different gear ratios, these motors can multiply or reduce the torque as needed for specific applications. This enables them to match the required torque and speed requirements of different machines or processes.
    Space Efficiency: The helical bevel gear design offers a compact and space-saving solution. The gears are oriented at an angle, allowing for a smaller footprint compared to other gear types such as parallel shaft or worm gears. This makes helical bevel gear motors suitable for applications where space is limited.
    Versatility: Helical bevel gear motors are versatile and can be used in various applications across different industries. They are commonly used in conveyor systems, mixers, agitators, packaging machinery, material handling equipment, and many other industrial applications.
    High Efficiency: Helical bevel gear motors are known for their high efficiency. The helical gear design minimizes power losses through efficient tooth engagement, resulting in higher energy efficiency and reduced operating costs. This makes them a preferred choice for applications that require continuous operation or high energy savings.
    Quiet and Smooth Operation: Helical bevel gear motors produce less noise and vibration compared to some other gear types. The helical gears engage gradually, resulting in smoother and quieter operation. This is particularly important in applications where noise reduction is desired, such as in office environments or noise-sensitive industries.
    Durability and Reliability: Helical bevel gear motors are designed to be durable and reliable, with high load-carrying capacities and robust construction. They are built to withstand heavy-duty applications and provide long-term performance, minimizing downtime and maintenance requirements.
    Customization Options: Helical bevel gear motors are available in various sizes, power ratings, and configurations to meet specific application requirements. Manufacturers often provide customization options such as different mounting arrangements, shaft configurations, and accessories to ensure compatibility and integration with different equipment and systems.
Overall, helical bevel gear motors play a critical role in power transmission, torque conversion, and efficient operation across a wide range of industrial applications. Their compact design, versatility, and high efficiency make them a popular choice in various industries that require reliable and efficient motorized systems.
